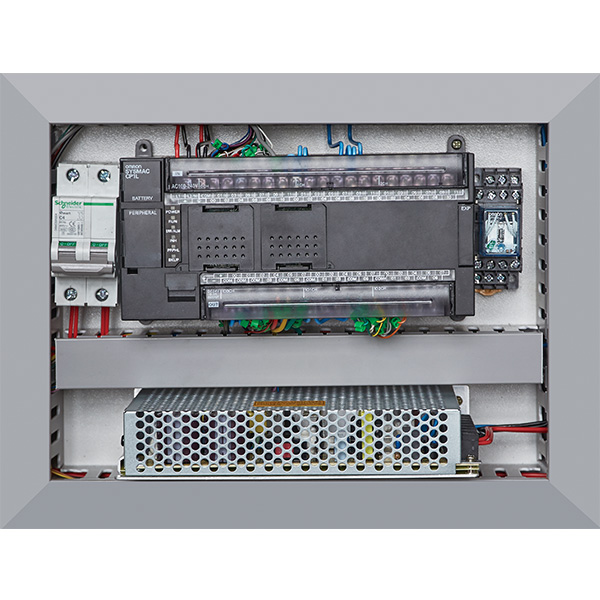

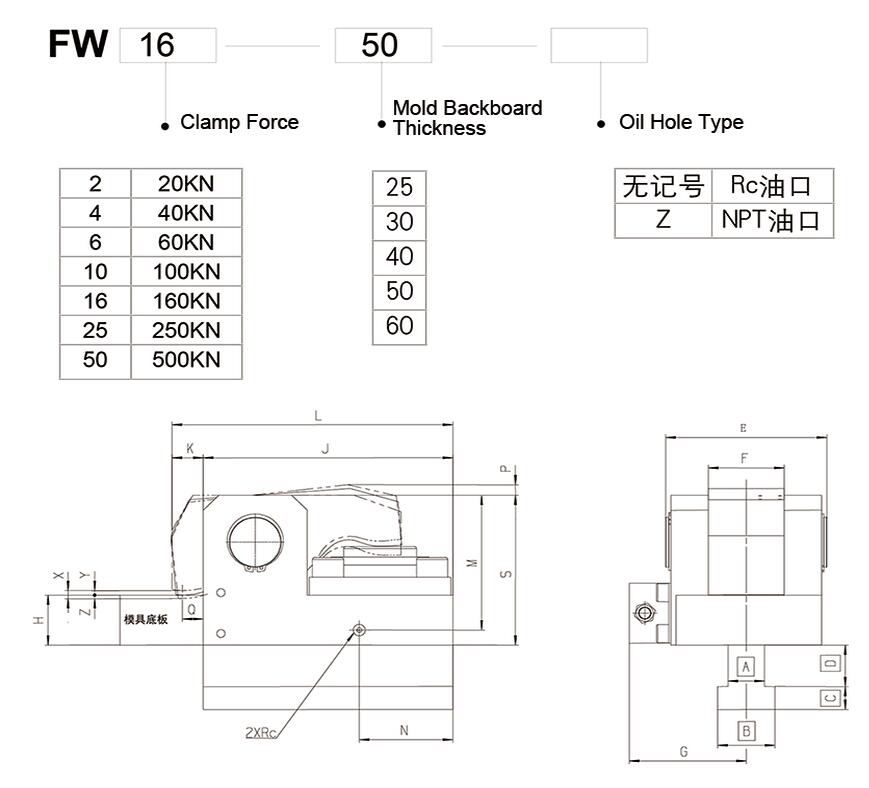

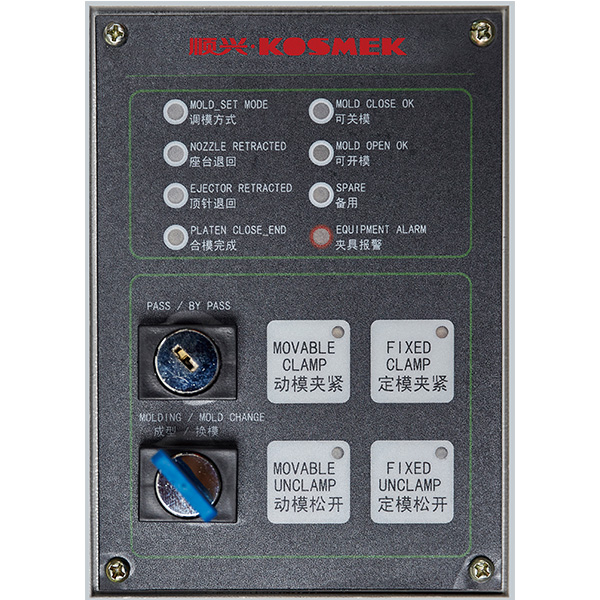

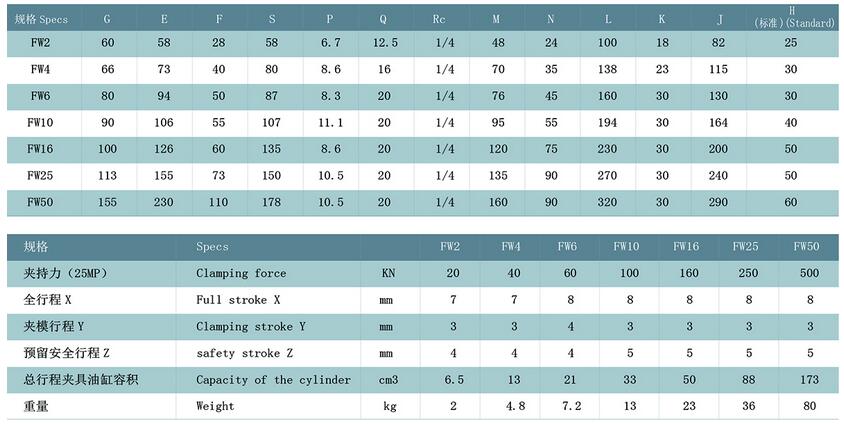

Remark: H represents the height of the mold bottom platen for the standard hydraulic clamping system, which can be changed specially according to the customer requirements.
Optional hydraulic grip steps:
● Select the type of the hydraulic clamping system according to working condition of the machine;

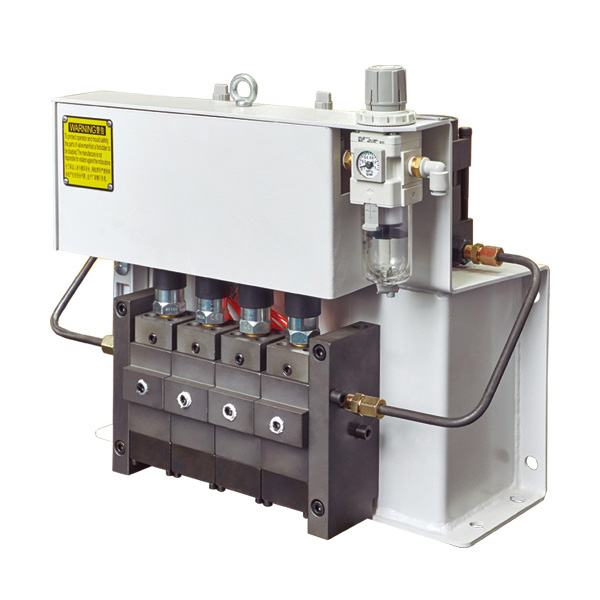

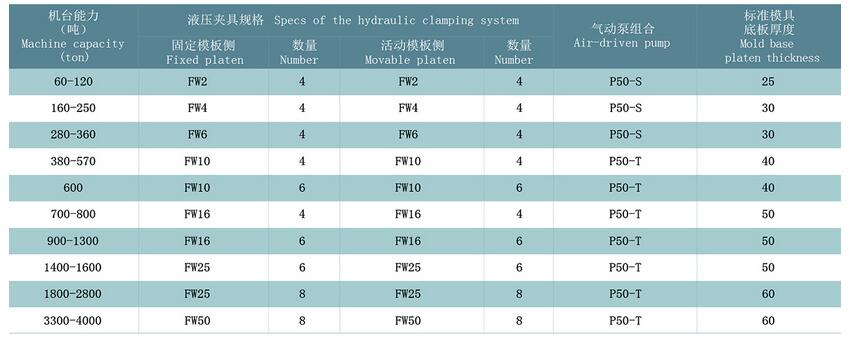

● Learn the mold open force of the machine equipped with QMCS in order to confirm the clamping force, number and arrangement type of the hydraulic clamping system;
● Learn the value of the H (the thickness of the mold base platen);

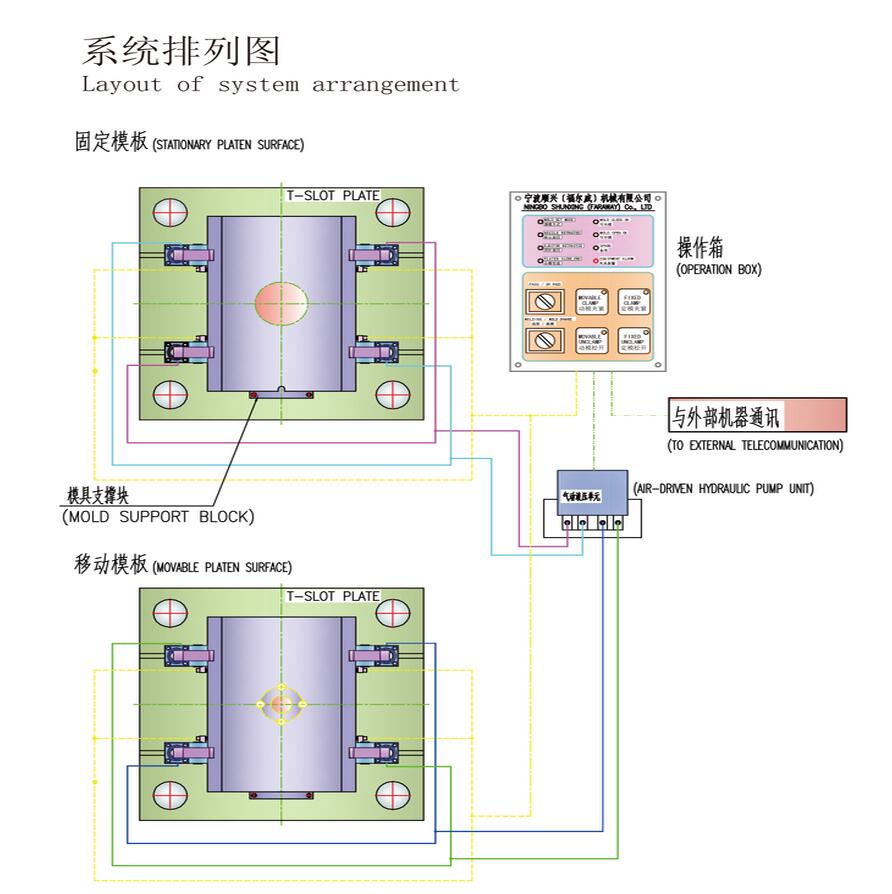

● Confirm the installation type of the QMCS, learn the slot dimension for the sliding type QMCS and installation hole dimension and space distance for the fixed type QMCS.
