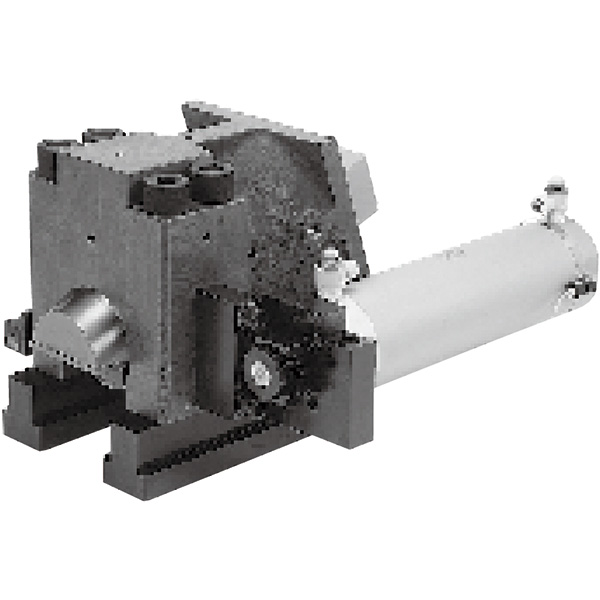

GLA is the die clamper that based on GW die clamper, but generally used for those molds that have different widths, and need to remote control the slide and clamp of the die clamper.
Remark

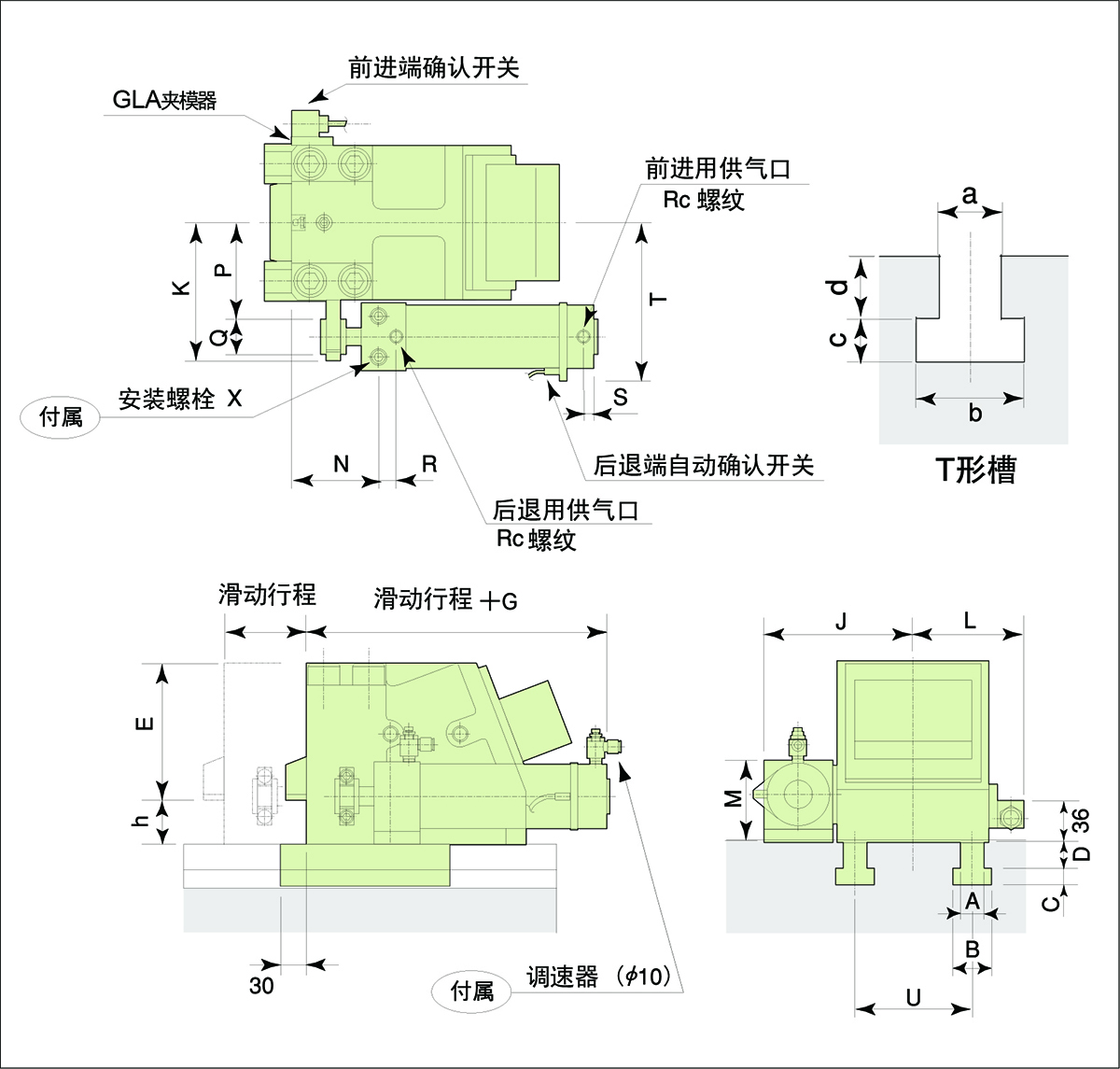

1.A, B, C, D are decided by the size of T-slot.
2.When ordering, please note clearly about the T-slot size (a, b, c, d) and the clamping part thickness (h).
3.The tolerance of the “d size” of the T-slot should be labeled within ±0.2mm.

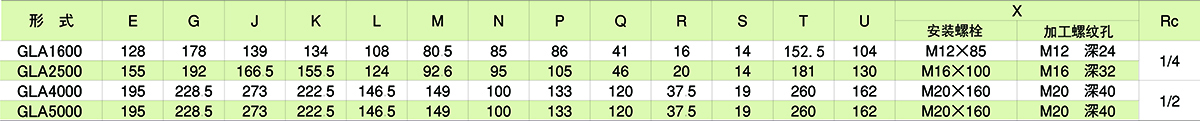

The dimension (the showing dimension is the same as GWA with same capacity)
